Products NoDec 3 Bari

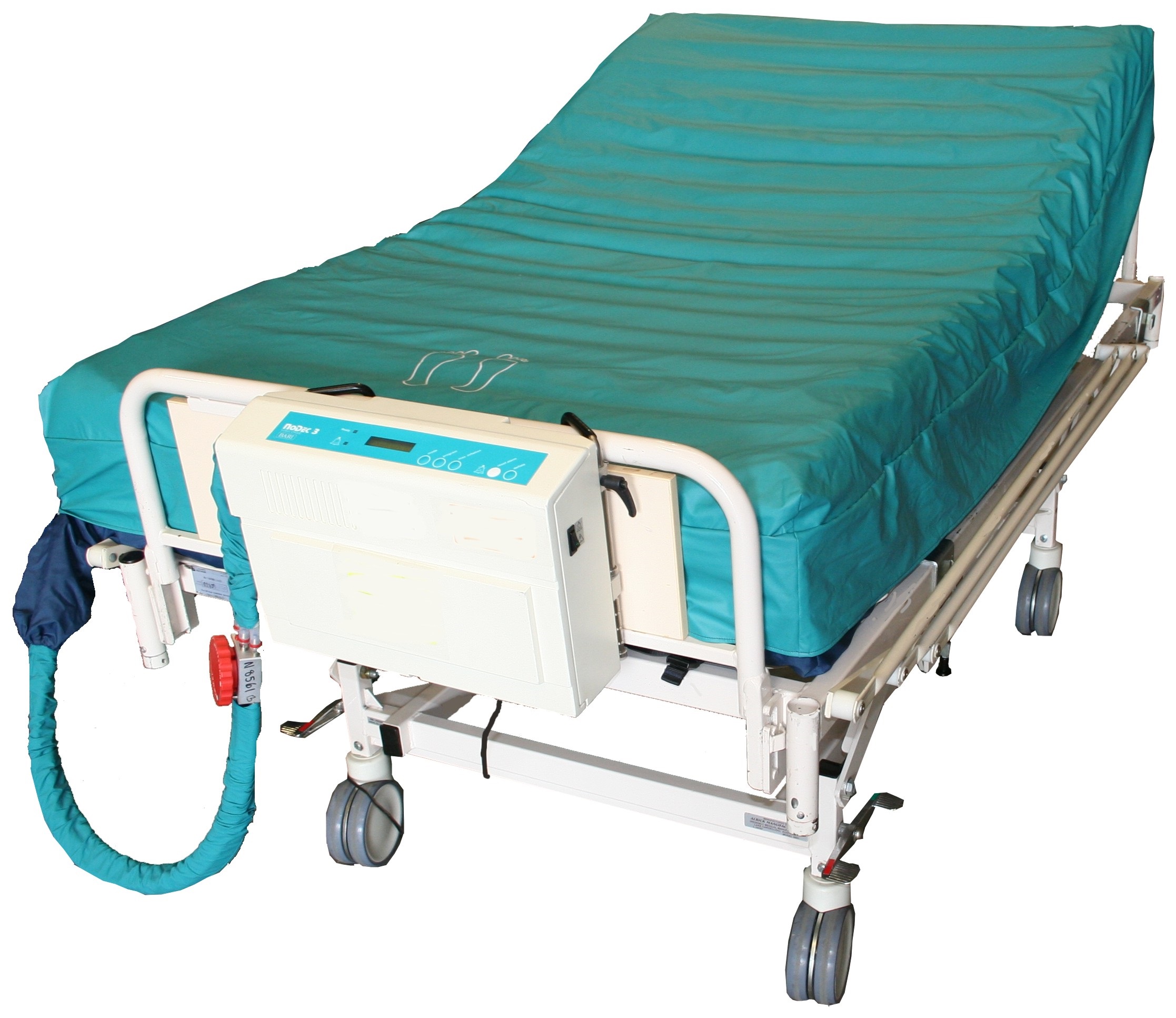

NoDec 3 Bari

The NoDec 3 Bari alternating pressure mattress is designed to replicate the body’s natural spontaneous movement and is clinically demonstrated to provide complete pressure elimination at regular Intervals for bariatric patient groups up to and including patients of 400kg. It is recommended for the prevention of pressure ulcers in patients at High to Very High Risk of pressure ulcer development as well as for healing established Stage 3 and 4 pressure ulcers.

With a unique combination of pressure elimination and comfort modes the NoDec 3 Bari provides the ultimate protection and comfort for the most vulnerable bariatric individuals and assists in the management of all grades of pressure ulcers.

The maximum patient weight is determined by the width of the mattress and NoDec 3 Bari is available in 3 sizes. NoDec 3 Bari requires a bed platform of 900mm to support up to a 280kg patient; a 1000mm platform up to a 330kg patient; a 1200mm platform up to a 400kg patient.

Any Questions?

Give us a call: 1300 303 603

Vacuum assisted deflation Enhances the pressure elimination phase to aid the treatment of even the most severe pressure ulcers
Solenoid technology Enhances pressure relief by providing a more efficient flow of air in and out of the cells therefore a superior reactive hyperaemic response in the deep tissues about the bony prominences
Easily accessible CPR Intuitive, always visible and accessible CPR release valve provides rapid deflation in approx. 10 seconds.
Side formers Permanently inflated side formers provide a firm mattress edge to ensure patient safety and support during exits or transferring to a trolley/chair.
Comfort control Adjustable comfort control to Firm, Medium and Soft settings provide nursing staff with the ability to adjust air cell inflation pressures in either Static or Dynamic mode to suit individual patient comfort or clinical requirements.
Timed Static mode Provides a firm and stable surface for essential nursing procedures such as physiotherapy and wound cleaning. A safety automatic return to Dynamic mode after 30 minutes ensures that patients are not put at risk of pressure damage.
30 hour Transport mode Easy to operate one way valve lets mattress remain inflated for at least 30 hours and also facilitates patient/bed movement without unnecessary risk to patient.
Audible and visual alarms A sophisticated set of audible and visual alarm functions provide enhanced patient safety and ensures peace of mind for nursing staff.
Dartex cover with welded seams Soft, easy to clean, waterproof Dartex cover provides a complete barrier against viruses and blood, minimising infection control risks.
Range of mattress widths Available in 900mm/1000mm/1200mm widths to provide optimum flexibility to cater for range of bariatric patients.



Risk Category High to Very High Risk
Therapeutic Safe Working Load Standard: 280kg Wide: 330kg Extra Wide: 400kg
Warranty 2 years
Mattress Dimensions 1900mm x 900mm x 250mm (Standard)
1900mm x 1000mm x 250mm (Wide)
1900mm x 1200mm x 250mm (Extra Wide)
Power Unit Dimensions 130mm x 480mm x 225mm
Product Weight Mattress: 8.2kg Power Unit: 6.8kg
Cycle Time 7.5 Minutes (1-in-3 cell cycle)
Cycle Control Microprocessor controlling solenoid valves
Supply Voltage 230V, 50 Hz
Power Rating Max – 100 Watts
Compressor Rating 24 litres/minute at 0.01 MPa
Electrical Safety Class II, Type B
Noise Level less than 30dB
