Floorline I-Plus Bed
Floor Level Bed
The aesthetically appealing FloorLine-i Plus is a complete care management solution. With its extensive range of features such as Trendelenburg, cardiac chair position and electronic CPR function, this bed offers the best possible care.

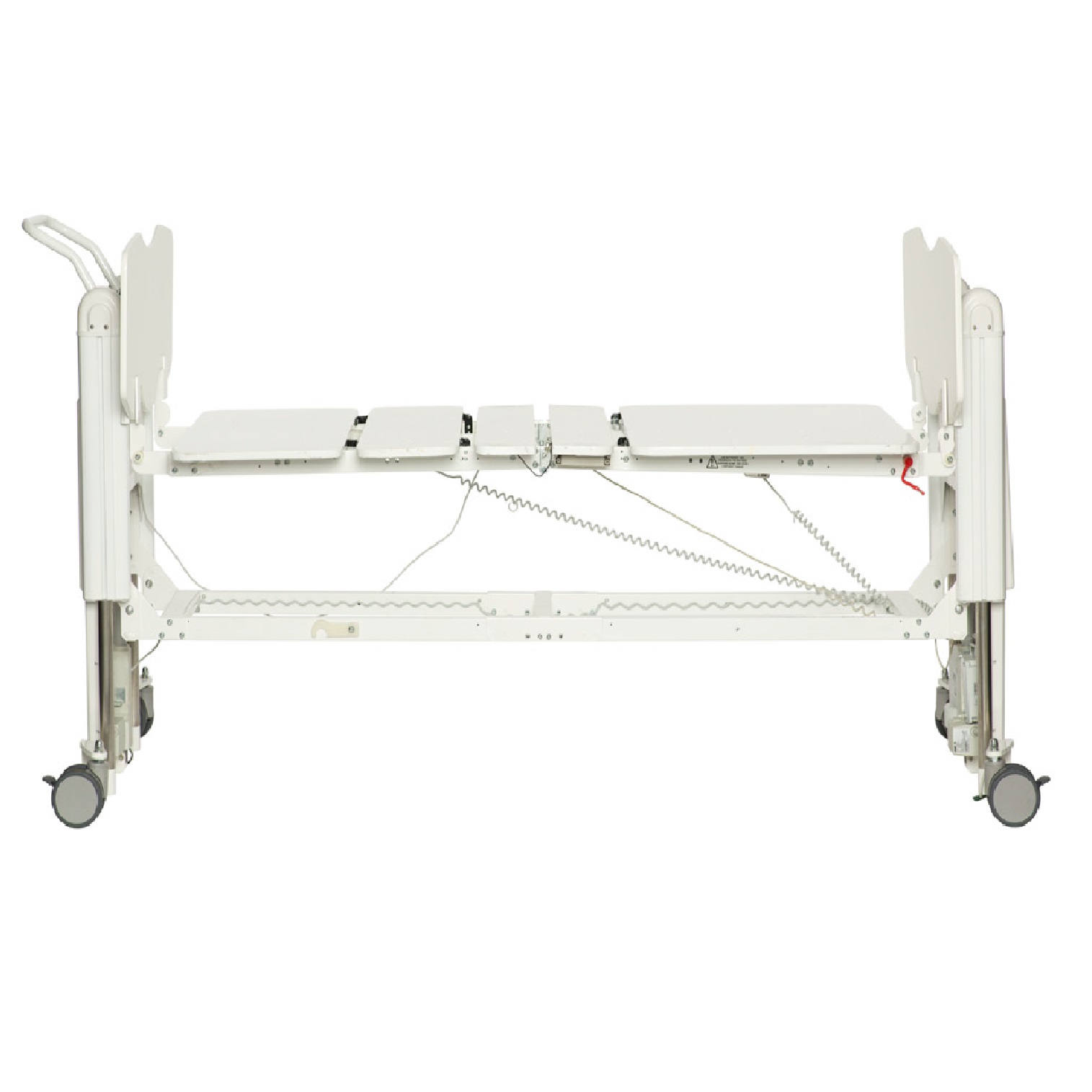

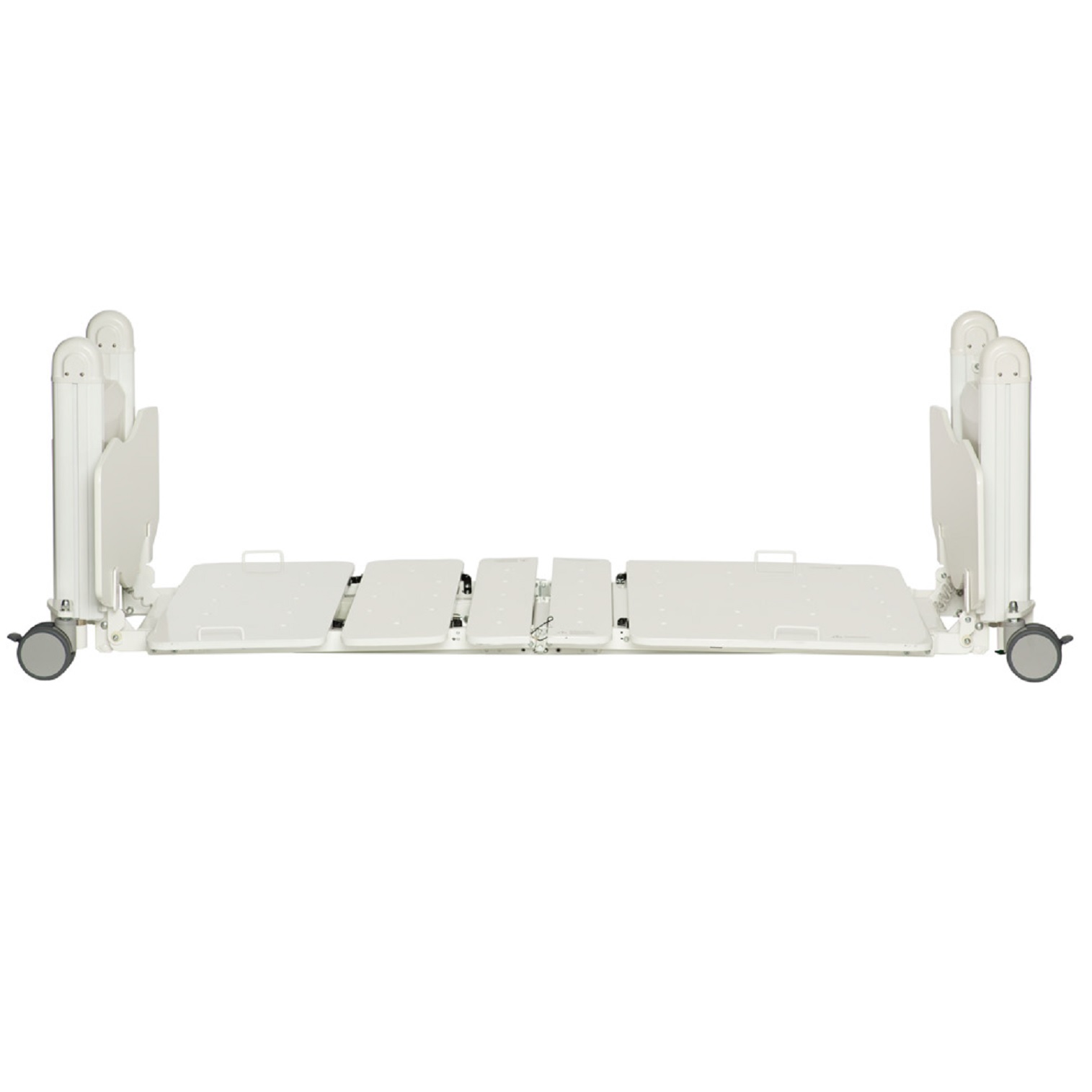

The FloorLine-i Plus is the perfect solution for preventing fall injuries. Its minimum height from the floor is just 100mm (3.9”). At the same time no compromises are made for excellent ergonomic working height reaching 800mm (31.4”).
The bed also has the optional of central locking castors. This feature detects when the bed has not been moved for 60 seconds, locks the castors and puts the bed in safe mode. These castors helps reducing the risk of fall injuries caused by a moving bed due to castors not being locked.
Any Questions?
Give us a call: 1300 303 603
| Low height from floor of just 100mm (3.9”) | Low height reduces the risk of injury to patients who are prone to falling out of bed. |
| Excellent working height of 800mm (31.4”) | Ensures staff can work ergonomically. |
| Four-section electric profiling | Is individually adjustable to ensure patient comfort and independence. |
| Attendant Control keypad w/ lockout | Integrated into foot end of the bed, for all basic control functions. Features automated timed lockout and lockout of individual functions preventing unauthorised adjustment of all electric bed functions from the Attendant Control Keypad (other than CPR). |
| Electric Trendelenberg 18˚ & Reverse Trendelenberg 18˚ | Aids patient comfort and assist nursing procedures. |
| Auto-contour positioning | One button simultaneous positioning of both Backrest and Knee-break into a cardiac chair position, provide efficient comfortable patient positioning even when the bed is in its lowest height position. |
| Full electric CPR facility | For flattening and levelling of patient platform in emergency situations. |
| CPR emergency quick release on backrest | Is easily accessible from both sides of bed ensuring quick release for lowering of backrest if no electrical power supply is available. |
| Removable head board | Providing quick and easy access to the patient in emergency situations. |
| Large locking and directional wheel castors | Ensure that the bed is easy to manoeuvre with the patient in bed. |
| Extension kit | An easy to use bed length extension provides maximum flexibility to cater for taller patients. |
| Side rails (optional) | Provide additional safety during nursing procedures or bed transportation. |
| Height Range | 100mm – 800 mm (3.9” – 31.4”) |
| Overall Length | 2325mm (91.5”) |
| Overall Length (with extension kit) | 2500mm (98.5“) |
| Overall Width | 925mm (36.4“) |
| Mattress Platform Length | 2175mm (85.5”) |
| Mattress Platform Width Length (with extension kit) | 2000mm (78.7”) |
| Mattress Platform Width | 900 mm (35.4“) |
| Trendelenburg / Reverse Trendelenburg | 18° |
| Safe Working Load (SWL): | 250 kg (551 lbs) |
| Max Patient Weight: | 185 kg (408 lbs) |
| Total Bed weight: | 140 kg (309 lbs) |
