Products Image 3XXL

Image 3XXL

Linet Bariatric Bed

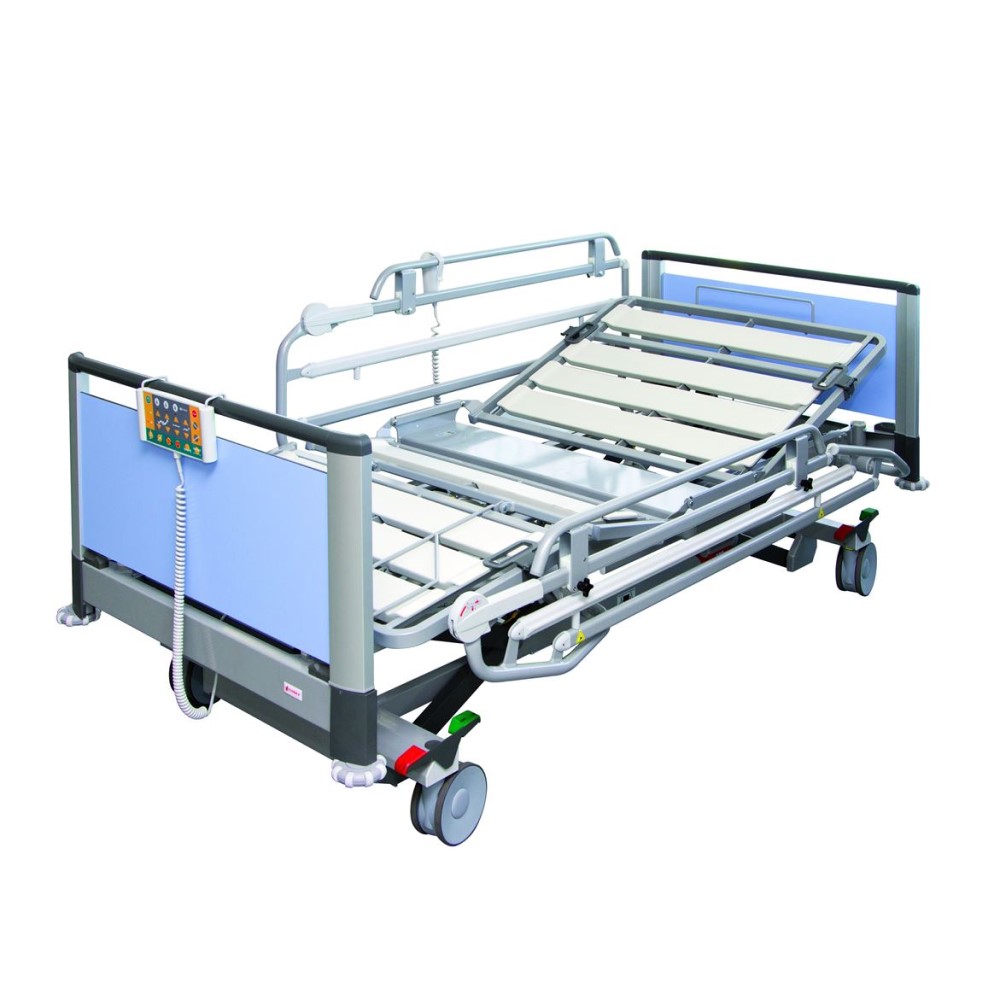

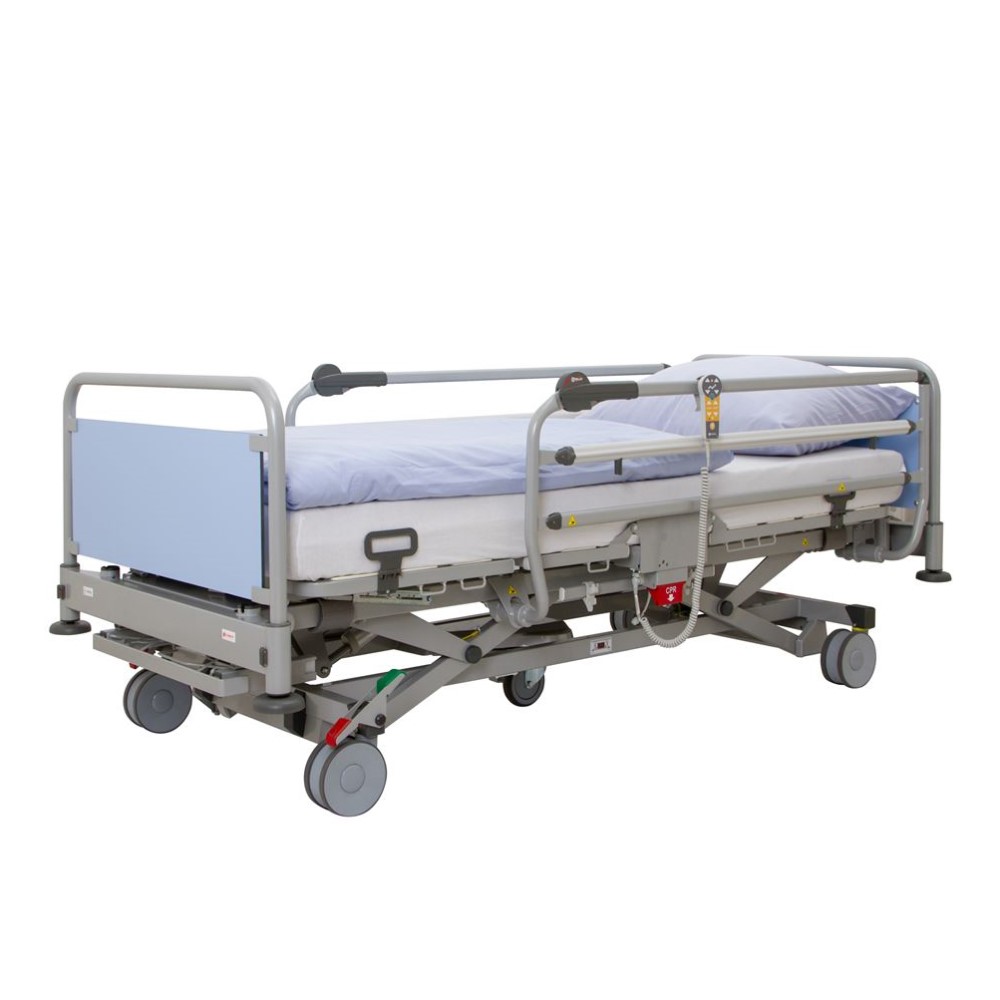

Image 3 XXL is a hospital bed specifically designed for bariatric patients looking for a comfortable, practical and safe healthcare bed with high standards. The Image 3 XXL has a high safe working load of 320 kg and is a versatile bed option that can be used in a wide range of hospital departments.

Extra low position

An extra low patient positioning (patient surface height is 28 cm) significantly reduces the risk of injuries from falls, especially during the night.

Ergoframe

Ergoframe® significantly reduces negative effects (shear, friction) of patient positioning and increases patient comfort. It decreases pressure inury development in high risk areas.

3 stop strategy

Automatic stop in 3 different height positions. Intended for safe sleeping. Comfortable examination or easier mobilization of the patient.

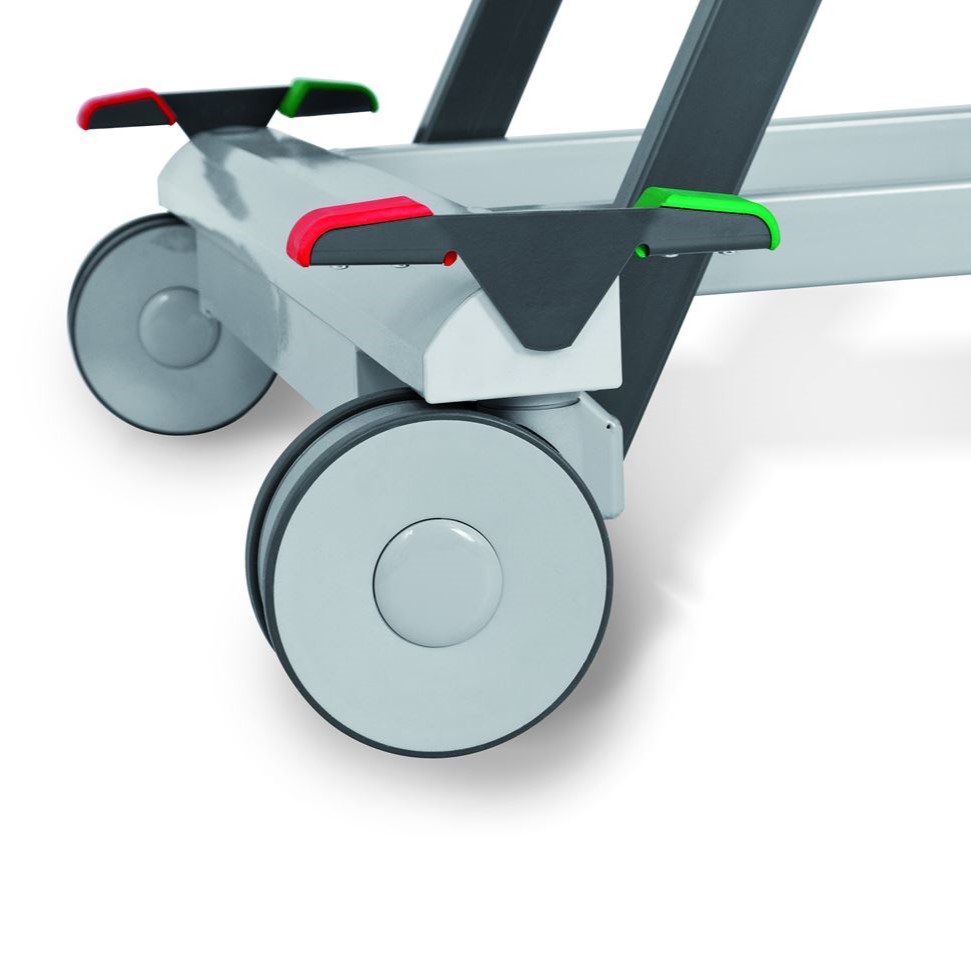

Brake alarm

The brake alarm automatically signals an unbraked bed and notifies hospital staff about possible danger. This prevents patient falls caused by leaning against an unbraked bed when exiting or entering the bed.

Any Questions?

Give us a call: 1300 303 603

Ergoframe positioningIncreases patient comfort and ergonomics minimising lung and abdominal compression.
Extra low position – 280mmSignificantly reduces the risk of injuries from falls and provides assistance with mobility.
Brake alarm Automatically signals an unbraked bed and notifies staff about possible danger. This prevents patient falls caused by leaning against an unbraked bed when exiting or entering the bed.
3-position bed extensionProvides flexible care options for taller patients.
Easy access CPR release mechanismIs easily accessible from both sides of bed ensuring quick release for lowering of backrest.

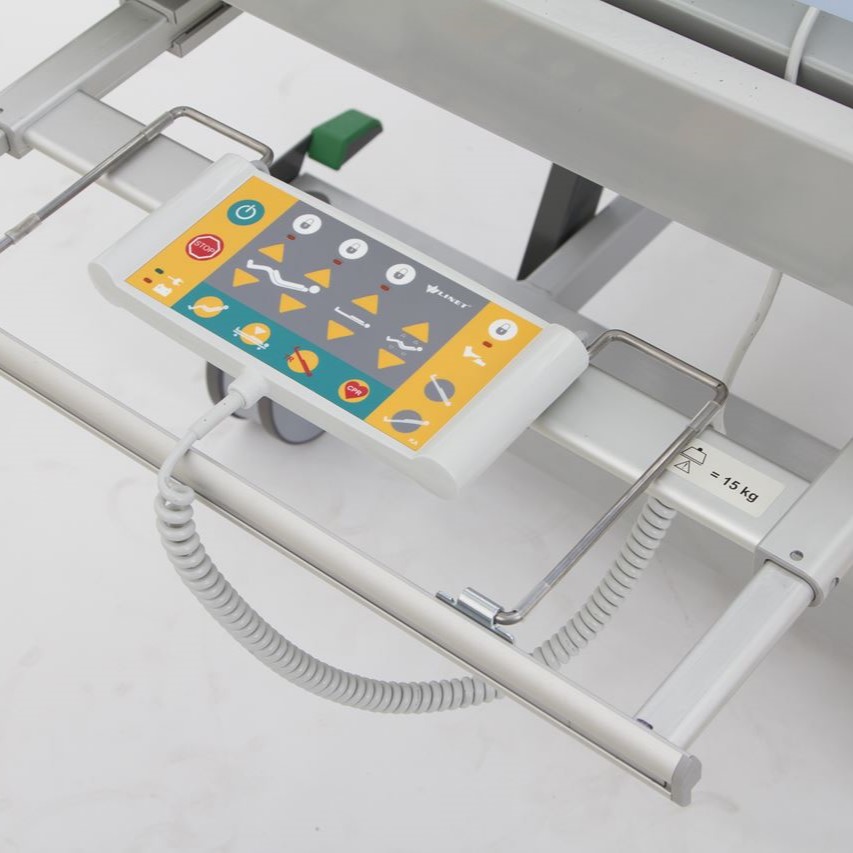

Flexible control optionsFor ease of ergonomic bed positioning and patient independence.

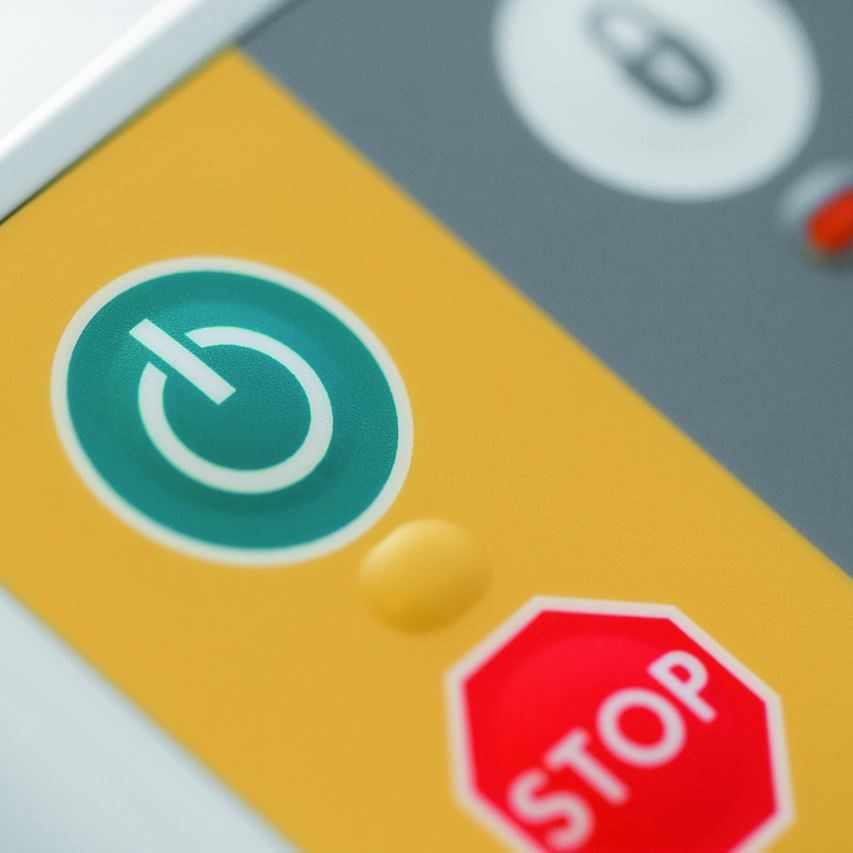

Safety GO buttonEnhances patient safety by preventing unintentional bed positioning. The GO button activates the bed controls for 3 minutes.
One-button positioning for key functionsQuick and efficient positioning for Auto-Contour, Trendelenburg/ Reverse Trendelenburg, Cardiac Chair and CPR.



Height Range280mm to 800mm
Overall Length2200mm
Overall Width1100mm
Bed Extension100, 220, 305mm
Mattress Platform Length2000mm
Mattress Platform Width1000mm
Trendelenburg14°
Reverse Trendelenburg14°
Safe Working Load (SWL):320 kg
Total Bed weight:160 kg (* Depending on configuration)
